Preliminary Ecore implementation of ER and BPC meta-models
Entity-Relation (ER) meta-model
The concepts provided by the ER meta-model comply with the definitions in Scientific Grounding

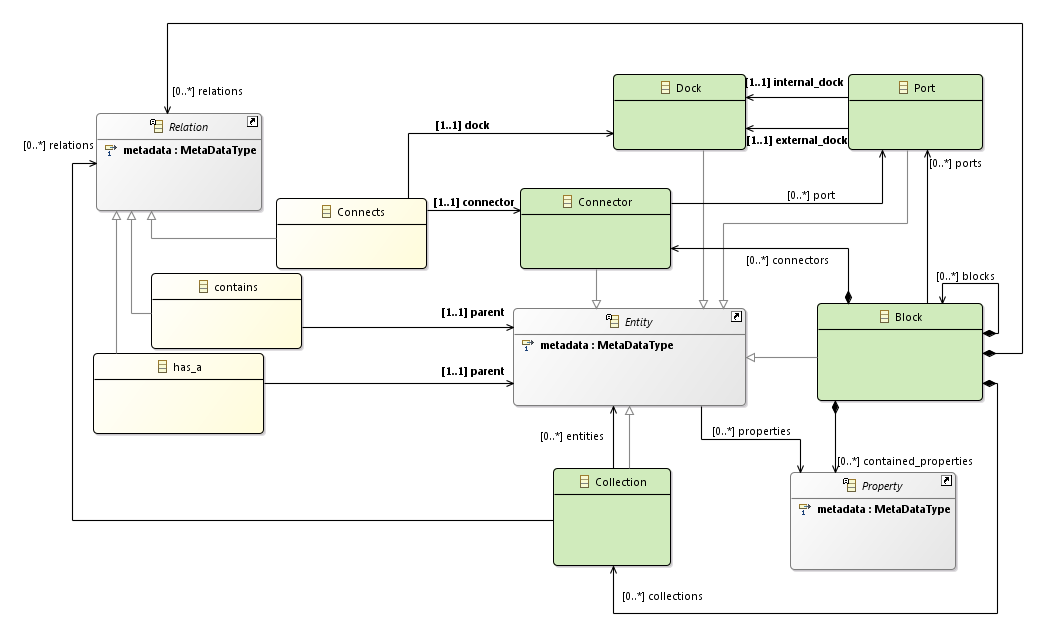

Block-Port-Connector (BPC) meta-model
The following meta-model includes concepts that are defined in Block-Port-Connector
Eclipse/Ecore implementation of ER and BPC meta-models
Eclipse/Ecore implementation of the above meta-models can be downloaded here
To access these meta-models you will need to:
1. Install Eclipse Neon Modeling.
2. Import the plugins in your workspace.
